File Upload

Files are data that a user has such as images, videos, documents, and so on. Unlike the standard form data uploading a file takes a little more configuration due to its format and security. We will see how we can upload files with Node.js.

List of Contents

• Creating a Server
• Using Multer
  • Server Setup
  • Multer Configurations
  • Test - Server
• Working with the Front
  • Angular
    • Reactive Form Setup
    • Template Setup
    • Class File Setup

Creating a Server

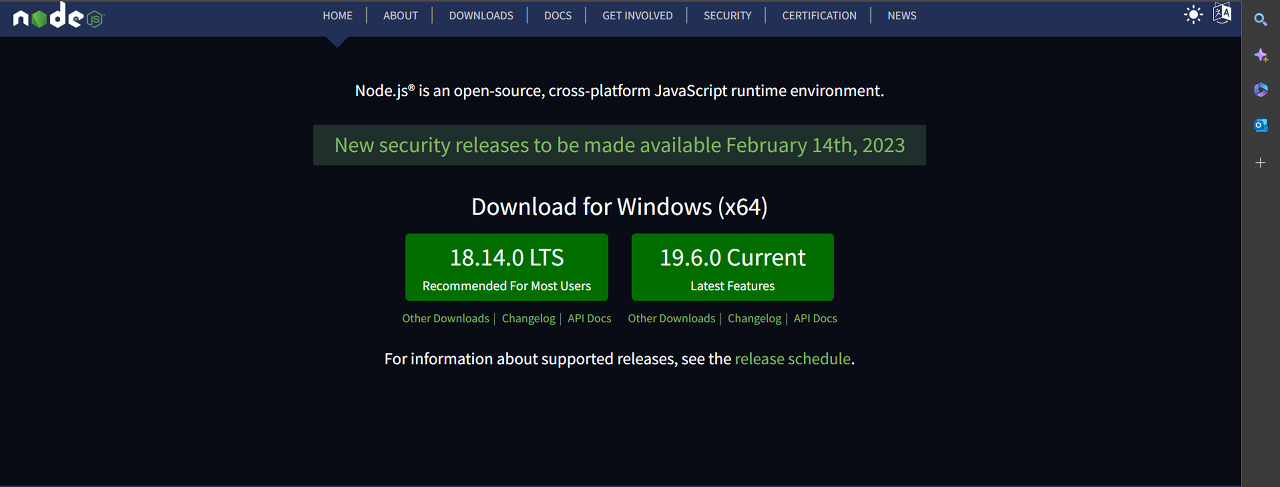

Creating a Server with Node.js

Using Multer

Open the project console and install the packages

npm i multer

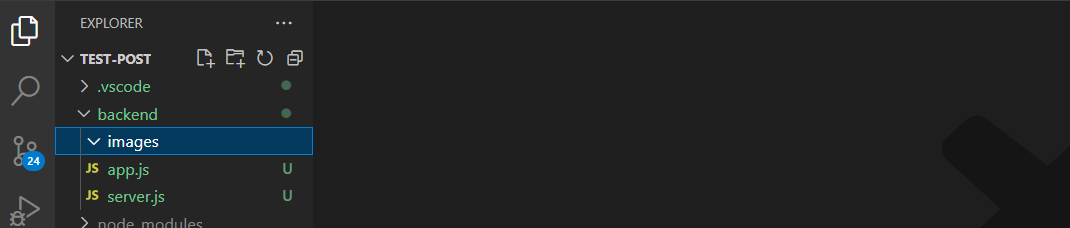

Create a folder to store images

Server Configurations

To use static files, we have to specify the path for them. Use 'express.static' and 'path' to do that. ('path' uses the alternate path specified, '/backend/images', when users' request comes to the path, '/images')

const express = require('express')
const app = express()
const path = require('path')
app.use('/images', express.static(path.join('/backend/images')))

Multer Configurations

Mime type is the format of a file. we can alter them as an option as shown below.

const MIME_TYPE = {
  'image/png': 'png',
  'image/jpeg': 'jpg',
  'image/jpg': 'jpg',
}

We can use diskStorage to set the destination of files and their name.

const storage = multer.diskStorage({
  destination: (req, file, cb) => {
    const isValid = MIME_TYPE[file.mimetype]
    let error = new Error('invalid')
    if (isValid) {
      error = null
    }
    cb(error, 'backend/images')
  },
  filename: (req, file, cb) => {
    const name = file.originalname.toLowerCase().split(' ').join('-')
    const ext = MIME_TYPE[file.mimetype]
    cb(null, name + '-' + Date.now() + '.' + ext)
  }
})

module.exports = multer({ storage: storage }).single('image')

Testing - Server

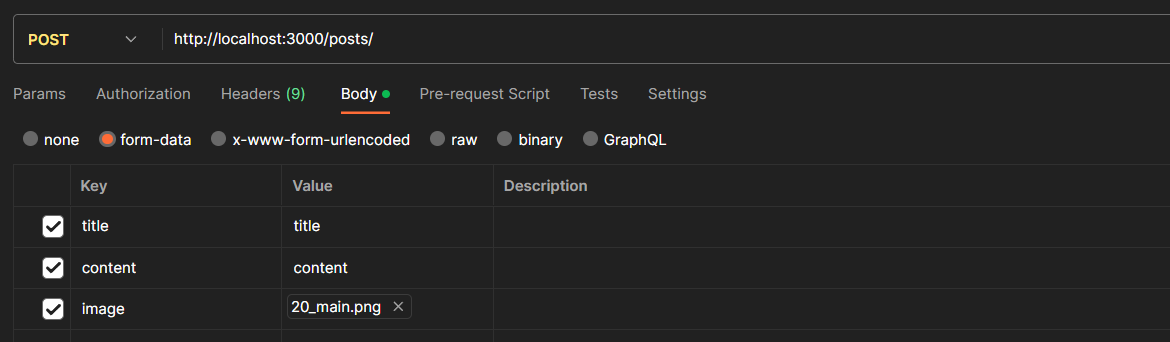

Open Postman and create a POST request with a form data in its body (Don't forget to type in keys -> if you don't see the input box, drag the table to widen)

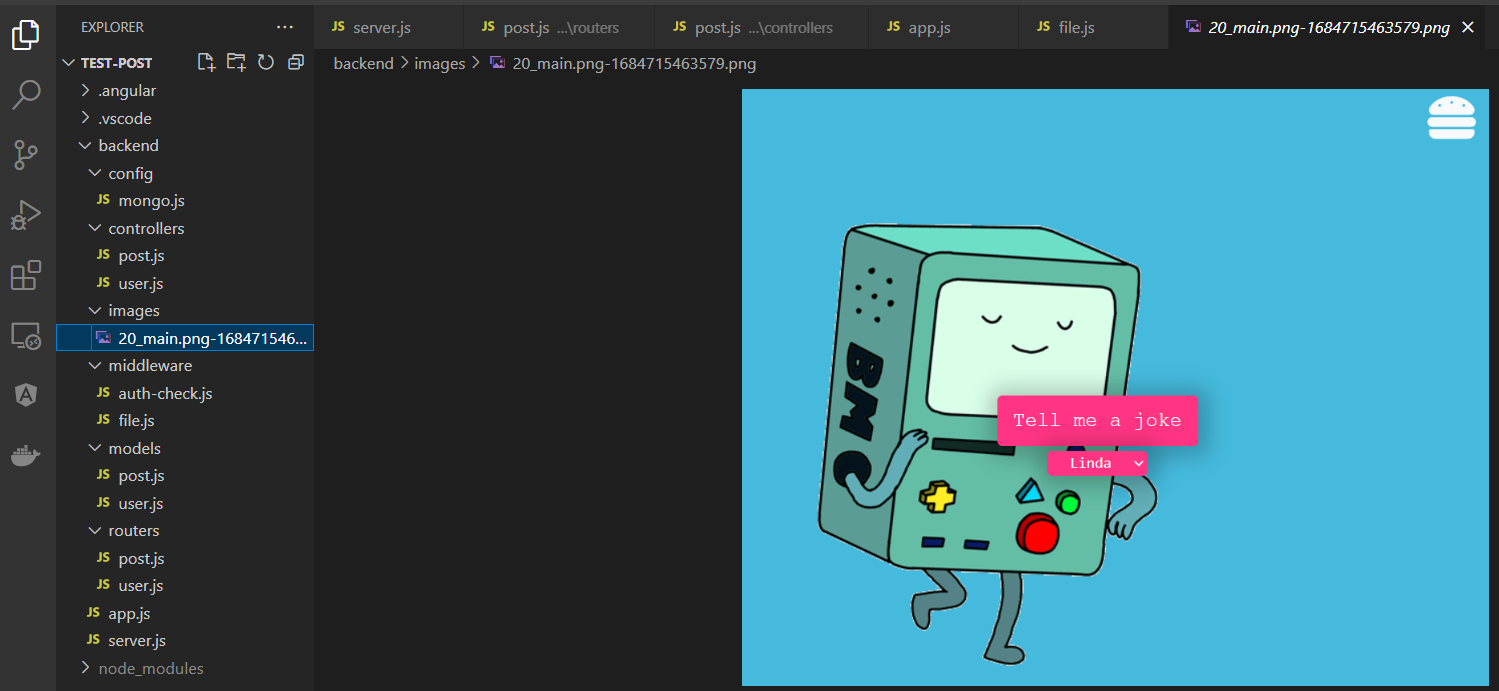

Stored image

Working with the Front

Now that we have created a server, let's see how we can send data from the front end to the server using frameworks.

Angular

With Angular, we will use the reactive forms to upload files



Reactive Form Setup

Angular Forms - Reactive Form

Template Setup

Add a form in the template file to upload a file

<form [formGroup]="form" (submit)="onSubmit()">
  <img [src]="imgPreview" alt="" height="100px">
  <input type="file" hidden (change)="onFileLoad($event)" #loader>
  <button mat-icon-button type="button" (click)="loader.click()">+</button>
  <button mat-stroked-button>Add</button>
</form>

Class File Setup

Add the code below to the class file to handle the file submitted.

1. Initialization of a form group and controller

form!: FormGroup;
constructor() {
  this.form = new FormGroup({
    image: new FormControl(''),
  });
}

2. Storation of the uploaded files and preview code.

imgPreview: string = '';
onFileLoad(e: Event) {
  const file = (e.target as HTMLInputElement).files?.[0];
  this.form.patchValue({ image: file });
  this.form.get('image')?.updateValueAndValidity();
  const reader = new FileReader();
  reader.onload = () => {
    this.imgPreview = reader.result as string;
  };
  reader.readAsDataURL(file as Blob);
}

Finally, a request to the server (In this example, I used a service class)

//post.service.ts
url: string = environment.url + 'posts/';

addPost(title: string, content: string, image?: File) {
  post = new FormData();
  post.append('title', title);
  post.append('content', content);
  post.append('image', image, title);

  this.https.post(this.url, post).subscribe((result) => {
  });
}

In this writing, we have seen how we can store files with Node.js

---

References

multer - npm (npmjs.com)

multer
